What is a column in a building?

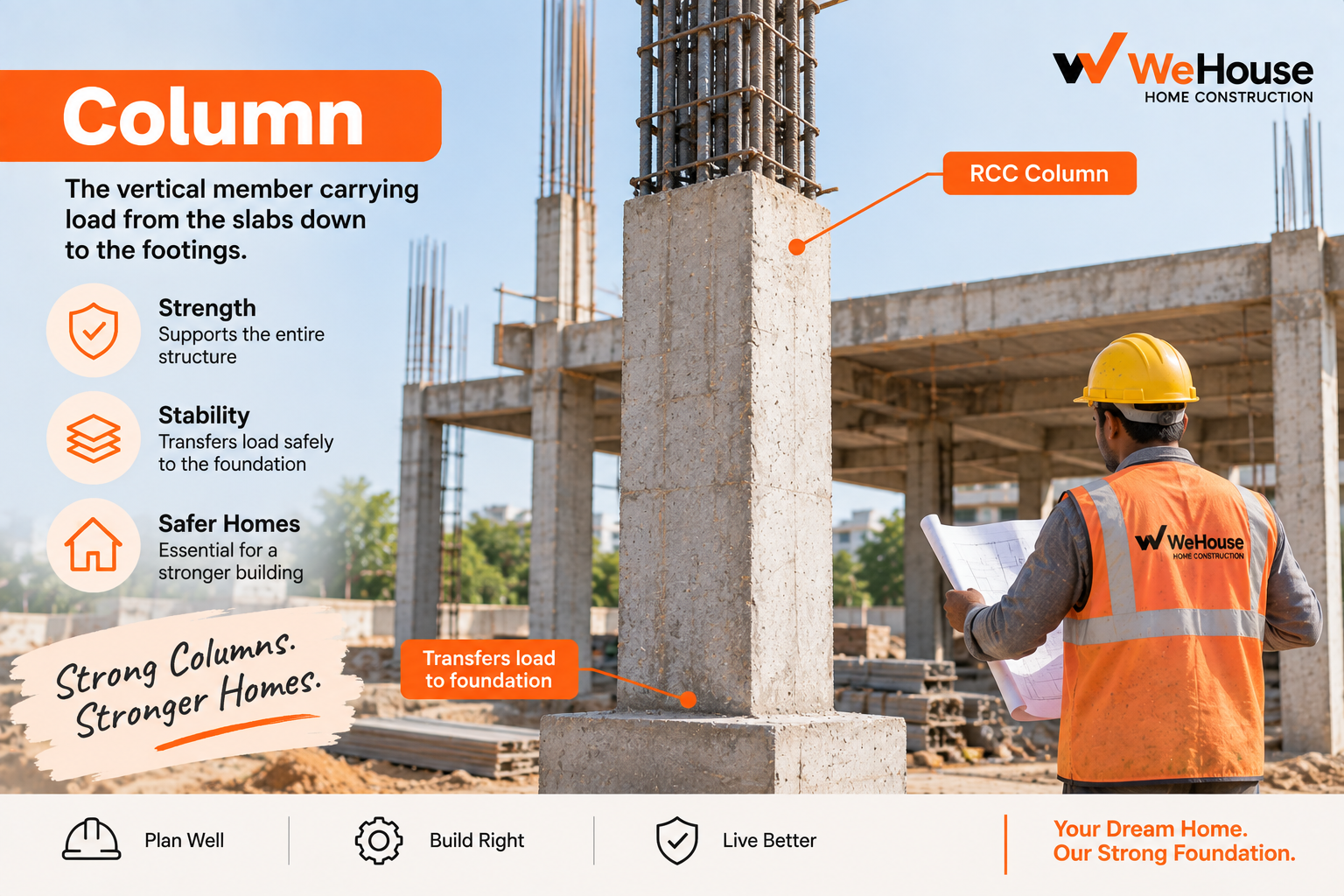

A column is a vertical structural member that carries load down through the building, from the beams and slab it supports, to the footing or foundation below it, primarily in axial compression. Together with beams and slabs, columns form the RCC frame that gives a modern Indian residential building its structural skeleton, with the brick masonry walls filling in as non-structural infill rather than carrying load themselves, as they would in an older load-bearing wall building.
What is the minimum size of an RCC column?
IS 456, the code of practice for plain and reinforced concrete, sets a minimum column dimension of 230x230 mm (roughly 9x9 inch) for a rectangular column in ordinary construction, though this minimum is rarely the governing size in anything beyond a single-storey structure. In practice, residential buildings from ground-plus-one upward commonly use columns from 230x300 mm up to 300x450 mm or larger, with the exact size fixed by the structural engineer's load calculation for that specific column's tributary area (the floor area whose load it carries) and the building's total height.
How much reinforcement does a column need?
IS 456 requires a minimum longitudinal (vertical) steel percentage of 0.8 percent of the gross cross-sectional area and permits a maximum of 6 percent (practically limited to around 4 percent to allow proper concrete placement around congested steel). A minimum of 4 bars is required for a rectangular column and 6 for a circular column. Lateral ties (stirrups) wrap around the vertical bars at intervals to prevent them buckling outward under load and to confine the concrete core; tie spacing is generally the least of the column's smaller dimension, 16 times the bar diameter, or 300 mm, whichever is smallest.
What clear cover does a column need?
A minimum clear cover of 40 mm to the main reinforcement is standard for a column under normal exposure conditions per IS 456, maintained on site using plastic or mortar cover blocks tied to the reinforcement cage before concreting. Adequate cover protects the steel from corrosion by keeping it isolated from moisture and carbonation reaching it from the concrete surface; insufficient cover is one of the most common causes of long-term rebar corrosion and concrete spalling in Indian buildings, especially in coastal or high-humidity regions.
What is a short column versus a slender column?
A column's behaviour under load depends on its slenderness ratio (roughly, its effective height divided by its least lateral dimension). A short column, below the slenderness limit IS 456 sets, fails by crushing of the concrete or yielding of the steel under pure compression. A slender column, above that limit, is also vulnerable to buckling — bending sideways under load before the material itself fails — and needs additional design checks and often a larger section or additional lateral restraint. Most residential columns, with typical floor-to-floor heights of 3-3.3 m and section sizes of 230-300 mm, fall in the short column category, but very tall unsupported column lengths (for example, a column running the full height of a double-height living room) need specific slenderness checks.
What are the common types of columns by shape and material?
| Type | Description | Typical use |
|---|---|---|
| Rectangular/square RCC column | Cast-in-place reinforced concrete | Standard residential and commercial framing |
| Circular RCC column | Round section, often exposed as a design feature | Porches, feature columns, some structural applications |
| Steel column | Rolled steel section (I-section, box section) | Industrial sheds, prefabricated structures |
| Composite column | Steel section encased in or filled with concrete | High-rise, heavy-load applications |
What goes wrong with columns on site?
- Wrong bar diameter or spacing. Substituting a smaller diameter bar or wider spacing than specified reduces load capacity even if it visually looks similar.
- Inadequate cover. Cover blocks missing, wrong size, or displaced during concreting, leaving steel exposed near the surface.
- Cold joints. Stopping a column pour partway and resuming later without proper joint preparation, creating a weak plane.
- Honeycombing. Poor compaction around congested reinforcement, especially at beam-column junctions, leaving voids in the concrete.
- Misalignment. A column cast off its marked centre line or out of plumb, which compounds upward through the building's floors.
The most useful checks before a column pour are the bar diameter and count against the structural drawing, cover block placement, and tie spacing — all visible and verifiable before the concrete goes in, unlike the finished, concealed column.
