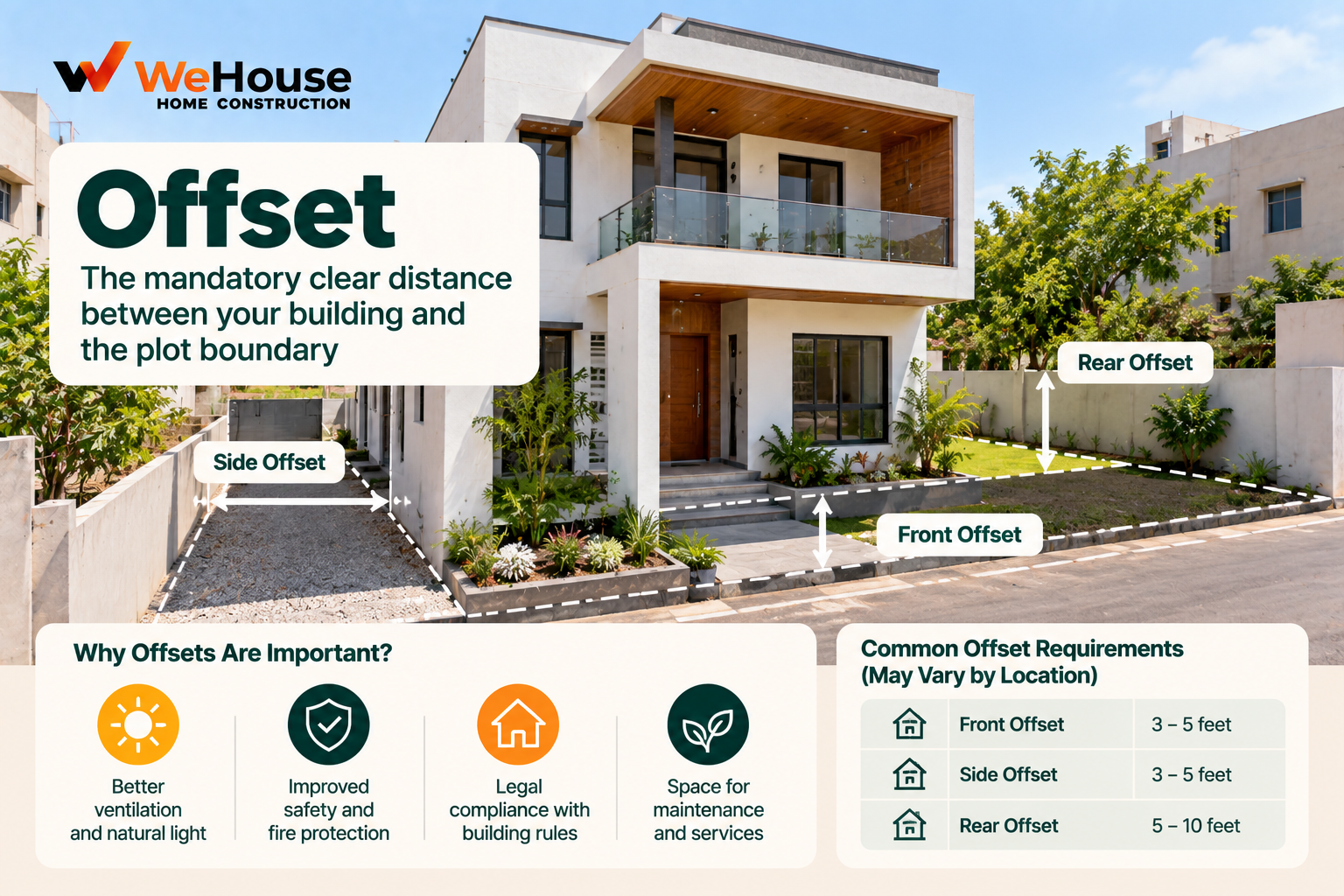

What is an offset in construction surveying?
An offset is a measured perpendicular distance from a fixed reference line, called a baseline or chain line, to a specific point or feature that needs to be recorded or located. It is one of the most basic and widely used techniques in both site surveying (recording where existing features sit on a plot) and layout marking (setting out where new structural elements should be positioned), because it reduces the task of fixing any point's location to just two simple measurements: how far along the baseline the point's nearest position falls, and how far perpendicular to the baseline the point sits from that position.
How is offset measurement used in a site survey?
When surveying a plot before design begins, a surveyor establishes a baseline — typically a straight line along one edge of the plot or a convenient reference feature — and then records the position of every relevant existing feature (boundary corners, existing structures, trees, utility lines, changes in ground level) by measuring both its distance along the baseline and its perpendicular offset distance from it. This gives a simple, verifiable record of exactly where each feature sits relative to a fixed, known reference, which the architect and structural engineer then use to accurately locate the new design relative to the actual site conditions, rather than relying only on a less precise overall site sketch or boundary description.
How is offset measurement used during layout marking?
During layout marking, the same offset principle is used in reverse: instead of recording where an existing feature sits, the site team sets out where a new structural element (a column centre line, a wall face, a building corner) should be positioned, by measuring the required distance along a reference line and the required perpendicular offset from it, then marking that exact point on the ground with a peg or similar marker. Using the same reference baseline established during the original survey ensures the new building is positioned consistently and accurately relative to the actual site boundaries and features recorded earlier, rather than introducing a fresh, potentially inconsistent reference system at the construction stage.
What tools are used to measure offsets?
| Method | Typical precision | Typical use |
|---|---|---|
| Measuring tape with a set square or optical square | Adequate for most residential layout marking | Individual houses, smaller sites |
| Theodolite | Higher precision, particularly over longer distances | Larger or more complex sites, precise structural layouts |
| Total station | High precision, combines angle and distance measurement electronically | Larger commercial or multi-unit residential projects |
| GPS / GNSS survey equipment | Varies by equipment grade, useful for larger sites or where establishing absolute coordinates matters | Larger land surveys, boundary verification |
Why does accurate offset measurement matter?
Because offset measurement is frequently the underlying method by which both the original site survey and the subsequent construction layout are tied back to the same fixed reference points, an error in an offset measurement — whether in the initial survey or during construction layout marking — can propagate into a building positioned incorrectly relative to the plot boundary, required setbacks, or an existing feature the design specifically needed to account for. This is one of several reasons a careful, verified layout marking process, discussed in more detail in the dedicated layout marking entry, is worth the attention it requires before excavation begins.
